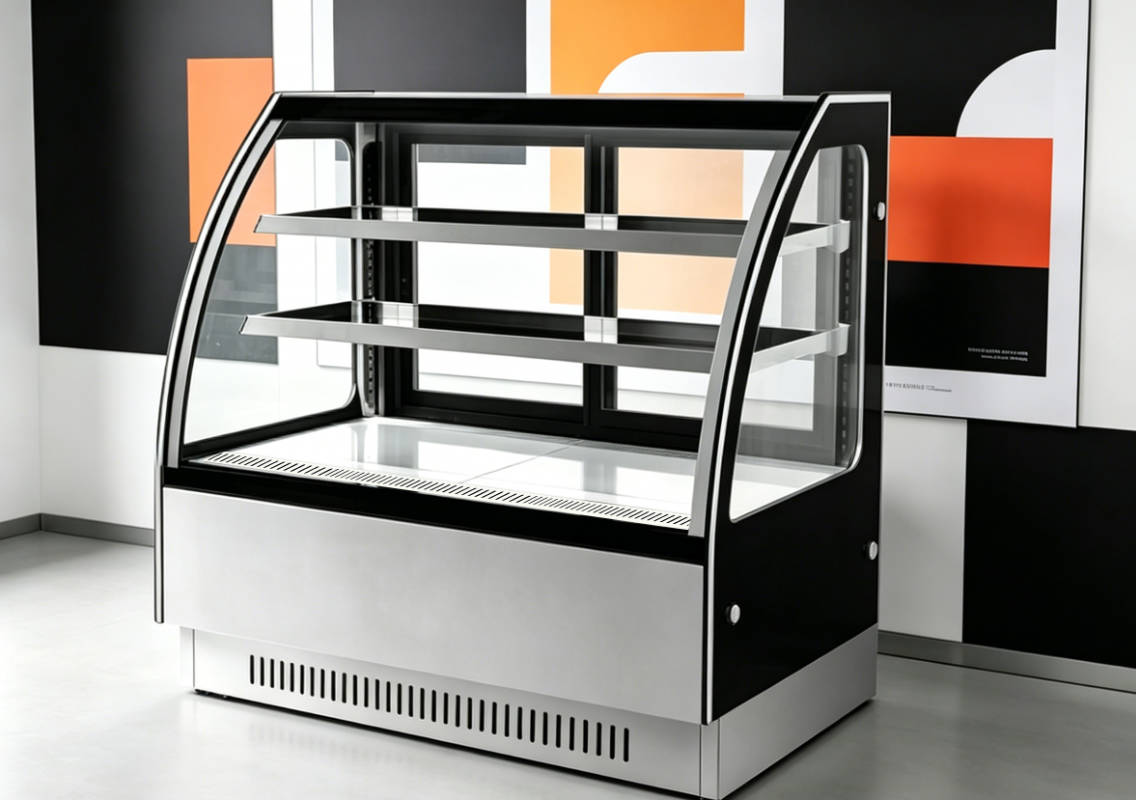

1.2m Commercial Curved Floor-Standing Refrigerated Cake Display Case

As early as 2025, Cooluma launched the curved floor-standing commercial refrigerated cake display case, designed specifically for high-end bakeries, western-style restaurants and hotels. Its unique compact 1.2m length and 2-3 adjustable shelves design strike the perfect balance between footprint and storage capacity.

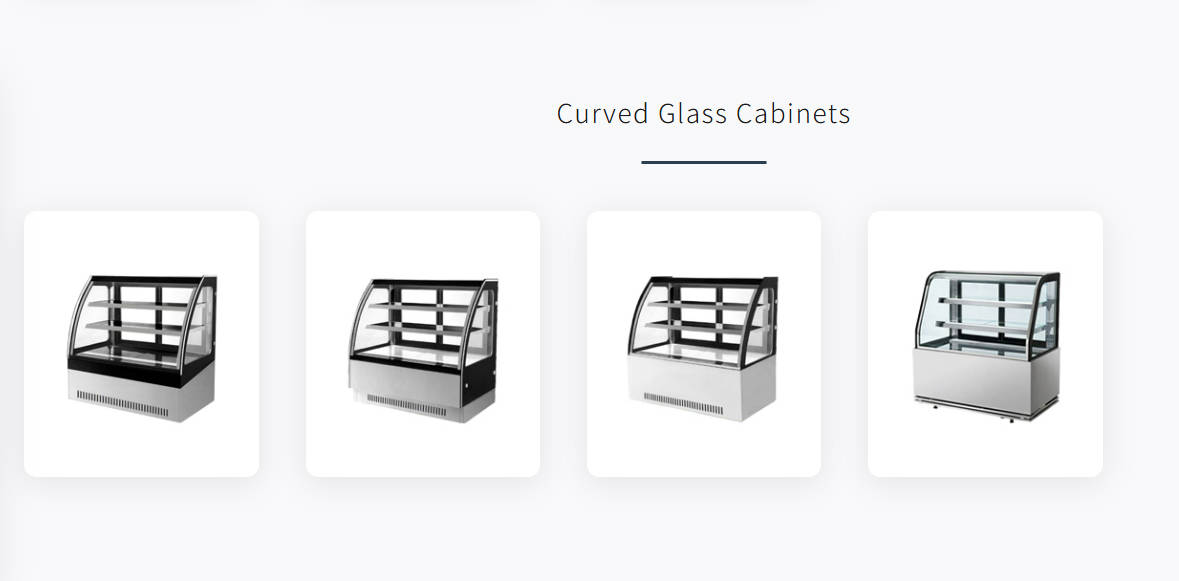

To distinguish it from the right-angle RA series of refrigerated cake display cabinets, we have categorized display cabinets with curved glass design into the C series. This series includes 4 models: CA, CB, CC and CD, which mainly differ in appearance and dimensions. Below, we will provide an in-depth analysis of the CB series as an example.

I. In-depth Analysis of the CB Series Refrigerated Cake Display Case

With a 1.2m footprint, this model offers a capacity of 515-650L, with both shelf and glass designs optimized for user experience.

1. Optimal Dimensions: 1200mm for Flexible Deployment

• Model Subcategories: CB1200S2/CB1200S3
• 2-Shelf Model: Dimensions 1200mm × 700mm × 1200mm (H)
• 3-Shelf Model: Dimensions 1200mm × 700mm × 1300mm (H)
• Applicable Scenarios: With a width of only 0.7m, it is ideal for narrow store aisles; its 1.2m display length is sufficient to hold 30-50 cakes or desserts of standard sizes.

2. Curved Glass (Unobstructed Display Aesthetics)

The CB series adopts high-definition curved tempered glass. Compared with right-angle glass, the curved surface design reduces glare and provides a wider viewing angle, allowing customers to clearly see every exquisite dessert on the shelves even when standing at the side.

3. 2-3 Adjustable Shelves to Accommodate Cakes of Various Heights

It can accommodate everything from petite cupcakes and macarons to Korean-style piped cakes as tall as 15cm.

• Shelf Height Adjustment: Supports jack-type ladder rack height settings
• Shelf Material: Stainless steel brackets with tempered glass panels
• Maximum Load Capacity: Approximately 15-20KG per shelf.

4. Precise Temperature Control: 2-8°C Professional Refrigeration

The temperature range of 2-8°C is the internationally recognized optimal storage temperature for cream cakes, cheese and butter. It not only prevents cream from melting but also avoids hardening of the cake texture caused by excessively low temperatures.

II. Energy Consumption and Service Life

When purchasing commercial equipment, the key factors to consider are the refrigeration system and energy efficiency index. The table below lists the core configurations for you:

III. Compliance with European and American Energy Efficiency Standards & Certifications

Cooluma has a deep presence in the global market. The CB series not only delivers robust performance but also holds the passport for export. We understand the compliance requirements of international trade, and this series of products meets the following standards:

1. MEPS (Minimum Energy Performance Standards): Power consumption is lower than the limits set by Europe and the United States, helping your customers save long-term electricity costs.
2. Key Certifications: [The equipment can provide certifications such as CE / CB / ROHS / ETL / SAA].
3. RoHS Compliance: Free of harmful substances such as lead and mercury.

A Note to Importers/Distributors: You do not need to worry about customs clearance issues. We can provide complete test reports and declarations of conformity.

IV. Application Scenarios and Solutions

Scenario 1: High-End Bakery Chain Stores

During peak seasons, the cabinet door is opened and closed frequently, causing temperature rebound, condensation and unsightly fogging on the glass.
Solution: Air cooling + high-efficiency evaporator for rapid temperature recovery; hollow heated glass [To be supplemented: Is it equipped with anti-fog electric heating wires? If yes, please specify.], which prevents surface fogging and maintains constant transparency.

Scenario 2: In-Store Packaging Section/Coffee Bar in Supermarkets

The space is limited and cannot accommodate a 2-meter large cabinet.
Solution: The 1.2m length allows it to be placed against the wall without blocking walkways. Its 700mm depth matches standard operating tables, ensuring a rational workflow.

Scenario 3: Trading Companies Seeking Export Opportunities

Many low-cost cabinets lack certifications and cannot be exported to the United States/European Union.
Solution: We provide one-certificate-per-cabinet or batch certification. The R290 refrigerant complies with the latest F-Gas Regulation.

V. Technical Parameters Overview (Quick Purchase Guide)

VI. Why Choose the Cooluma Brand?

1. Factory Direct Supply: We provide ODM/OEM services, and large orders can be customized with logos and body colors.
2. Warranty Service: 1-year warranty for the compressor, and the warranty for the whole machine is subject to the warranty card.
3. Sufficient Inventory: Our regular best-selling models support mixed batch ordering, with a delivery time of 2-3 months, subject to the specific customization quantity.

Cooluma has accumulated 17 years of industry experience, providing users with reliable and secure services. We welcome customers to visit our company for on-site inspections.
